Corrosion Protection, Simplified

Industrial bolted connections have always been the hard problem in corrosion protection. Complex geometry. Thin spots. Sharp edges that defeat coatings. We stopped trying to work around the geometry — and removed it from the equation entirely.

Our Products Request Information
The Problem

Bolt geometry defeats traditional coating methods.

Flanges, studs, nuts, and bolt heads are among the most corrosion-vulnerable assets on any industrial facility — and the hardest to protect. The compound geometry of a threaded fastener creates angles that are difficult to abrasive blast effectively, and sharp edges that produce thin film thicknesses no matter how carefully coating is applied.

The result is premature failure at exactly the points where you need the protection most. Maintenance cycles get shorter. Costs compound. And the problem never really goes away — it just comes back faster.

The Approach

Encase it. Fill it. Seal it.

Instead of coating around the geometry, ARCap physically encases the entire bolt head or nut assembly inside a polymer shell. During application the shell is filled with a polyisobutene compound that flows into every void, displacing air and moisture completely. There is no geometry left to protect — because it's no longer exposed. The PIB material stays permanently plastic, never cures, and won't expand or contract with thermal cycling.

Polyethylene based materials demonstrate excellent chemical resistance in a variety of environments making them an excellent addition to nearly any industrial setting. Whether new construction or ongoing maintenance, your bolted connections need an effective solution that traditional barrier coatings struggle to achieve.

Bolt-Ups Made Easy

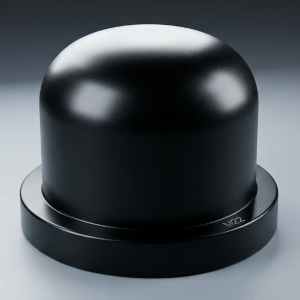

The ARCap

A precision-fit polymer cap engineered for industrial bolt and nut assemblies. Available in LDPE and HDPE depending on your service temperature and environmental conditions. Specify any RAL colour code to match existing plant or asset identification standards. ARCaps are produced to order depending on the height requirements necessary to encase the bolt head/nut and ensure a low profile for tightly adjacent areas.

Installation requires no specialized tooling, no technical knowledge, and minimal surface preparation.

Material — Standard LDPE
Material — High Temp HDPE
Max Service Temp 80°C (LDPE)
100°C (HDPE)
Surface Prep SSPC-SP1
Filler Any Polyisobutene (PIB) based product
UV Option HALS + Antioxidant additives
Chemical Resistance Broad pH range
Tooling Required Power Tools

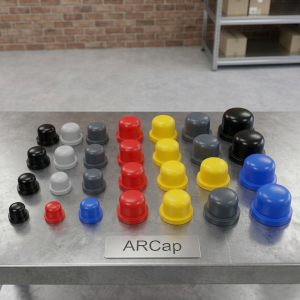

Colour Matching Any RAL code

Complete Geometry Encapsulation

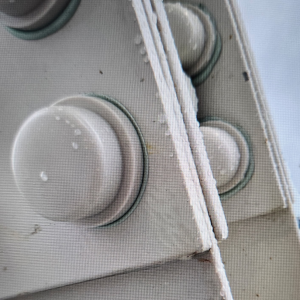

The cap locks under the chamfer of the bolt head or nut, fully enclosing the fastener assembly. No angles left exposed. No edges to thin coat. The cavity space is sealed by the PIB fill.

Permanent Plastic PIB Fill

Polyisobutene compounds are formulated to remain plastic indefinitely. They do not cure, do not harden, and do not expand or contract under thermal cycling — maintaining the seal throughout the service life.

Minimal Surface Preparation

SSPC-SP1 solvent cleaning is the minimum requirement. No abrasive blasting, no profiling, no specialist surface prep crews. Preparation that can be done by whoever is already on the job.

Chemical & Environmental Resistance

LDPE and HDPE are chemically inert across a broad pH range, making ARCap suitable for chemical plants, marine environments, water treatment, and process piping exposed to aggressive media.

Installation Process

Four steps. No tooling. No crew.

01

Verify Conditions

Confirm substrate is dry and at least 3°C above dew point before application.

02

Prepare Surface

Solvent clean to SSPC-SP1. Remove any loose debris from the area.

03

Fill the Cap

Load the ARCap with PIB corrosion protection compound.

04

Apply & Lock

Push the filled cap by hand onto the fastener assembly until the lip seats under the chamfer.

✓

Protected

Geometry is encased. PIB fills all voids. Moisture and contaminant ingress is blocked.

Technical Documents

ARCap Documentation

Product data sheets, technical data sheets, and installation instructions available for download.

ARCap Product Brochure ARCap_Product_Sheet.pdf
Download
ARCap LDPE Technical Data Sheet ARCap_LDPE_TDS.pdf
Download
ARCap HDPE Technical Data Sheet ARCap_HDPE_TDS.pdf
Download
Installation Instructions ARCap_Installation.pdf
Download
In Depth

Technical Reading

Corrosion Protection

Coating Bolted Connections: The Gap Between Specification and Reality

Why conventional barrier coatings fall short on threaded fastener assemblies — and what that costs in the field.

Read Article →
Corrosion Protection

Polyethylene in Industrial Service: The Case for a Commodity Material

Why polyethylene belongs in your materials selection conversation — and what it offers that conventional corrosion protection systems cannot.

Read Article →
Manufacturing Capabilities

Custom Injection Moulding

Arcon is a plastics manufacturer operating within the corrosion protection space. Beyond ARCap, we offer full-service custom injection moulded part production for industrial applications — from concept to delivery.

  • Submit a part to replicate, a set of specifications, or a blueprint — we handle design, materials selection, and fabrication
  • Overseas manufacturing capability for production volumes exceeding 10,000+ units
  • Material selection matched to chemical exposure, temperature, and mechanical requirements
  • Professional engineering support from initial inquiry through delivery
  • RAL colour matching available across all produced parts
10,000+
Unit production runs available through our overseas manufacturing network
Three Paths
Submit a physical part to replicate, provide dimensional specifications, or supply engineering drawings
Any Colour
Colour matching to any standardized RAL code for identification, compliance, or brand consistency
Get in Touch

Let's talk about your project.

Whether you're dealing with a corrosion problem on a bolted flange, looking to source a custom moulded part, or just want to understand what ARCap can do for your facility — reach out. We respond promptly.
