Coating Bolted Connections

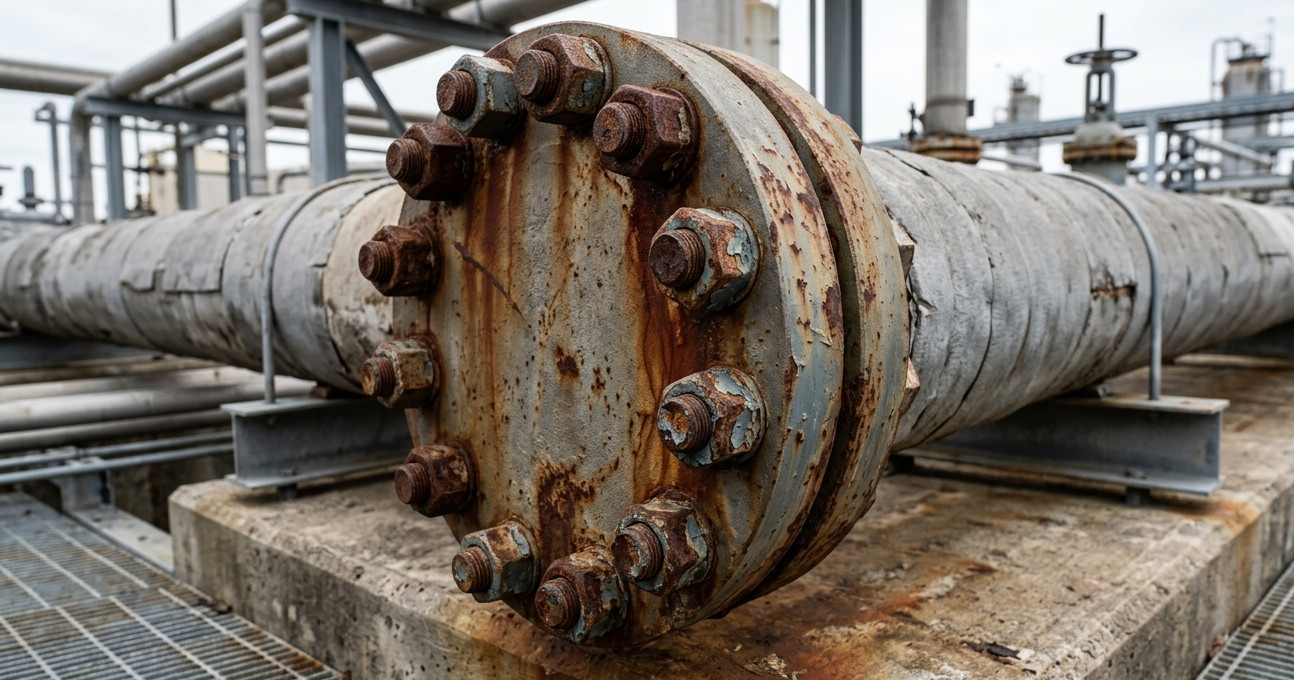

Corrosion protection on industrial infrastructure has come a long way. Modern coating systems – epoxies, urethanes, zinc-rich primers – are genuinely effective on the surfaces they were designed for. Flat plates, pipe barrels, structural members: these are surfaces that respond well to proper preparation and a well-applied coating system. The chemistry works, the physics cooperate, and when the job is done right, the coating performs for years with minimal intervention. Flanged piping joints, structural connectors, anchor assemblies – the bolted connections that hold everything together – are a different story entirely. The problem is that bolted connections don't behave like flat surfaces. They never have, and the coating industry has been working around that reality for decades with mixed results.

Most corrosion protection specifications are written at the design level. A coating system is selected, surface preparation standards are defined, and the specification is applied across the asset as a whole. On paper, this is entirely reasonable – the asset has a defined protective barrier, the contractor has clear requirements, and the inspector has measurable acceptance criteria. The difficulty is that a coating specification written for a pipe barrel or a structural member doesn't translate cleanly to a threaded fastener assembly. The geometry is categorically different, and the same system that performs reliably on a flat or gently curved surface encounters fundamental physical limitations the moment it meets a bolt. That disconnect between what is specified and what is achievable in the field is rarely explicit in the documentation, which means it tends to surface during construction or maintenance as a practical problem rather than a design consideration. What reads as straightforward in a project specification becomes a field-level conundrum for contractors and construction managers tasked with actually executing it – and the cost and schedule implications of working around geometric complexity on a large bolted assembly are rarely trivial.

A threaded fastener assembly is one of the most coating-hostile geometries in existence. Not because the products are inadequate, and not because the people applying them aren't following procedure. The problem is physical, and it starts with the thread form itself. Every bolt thread is a repeating series of sharp crests and deep roots running helically along the fastener. Coatings pull away from sharp edges under surface tension, thinning out at the peaks regardless of how much material is applied. The only way to build acceptable film thickness over the thread crests is to keep applying coating until the valleys begin to fill – at which point the threads themselves are being buried in coating, compromising the thread engagement that the fastener depends on.

It is a losing proposition in either direction: undercoat and the crests corrode, overcoat and the edges are functionally degraded and difficult to strip without damage.

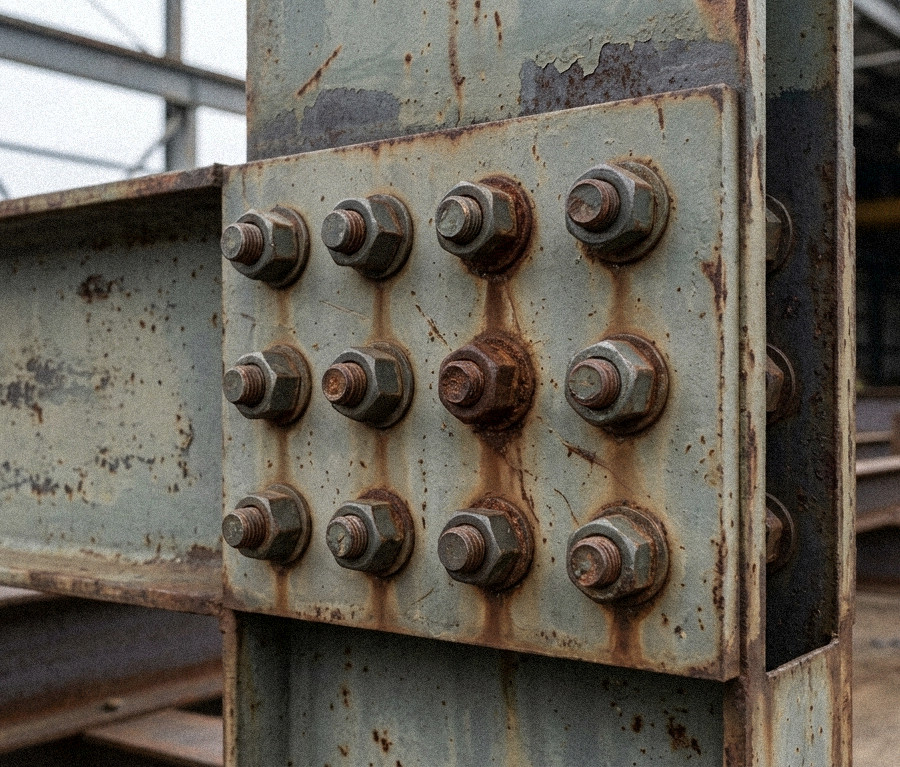

Nuts and bolt heads compound the problem in a different way. A nut has six outer edges – the corners where adjacent wrench flats meet – and those edges behave exactly as the thread crests do, shedding coating under surface tension and resisting adequate film build. To drive the edge thickness up to an acceptable reading, applicators build up heavily on the flat faces on either side. The flats end up carrying far more coating than they need while the edges, which are the actual weak points, remain marginal. The wrench flats present their own downstream consequence: nuts are manufactured to close dimensional tolerances, and that coating buildup reduces the clearance between the nut and the correct tool. In practice this means that when a flange or plate needs to come apart for maintenance and inspection, the specified wrench often doesn't fit cleanly. Before the actual work can start, someone is breaking out a grinder or calling in a blaster. Getting the right tool onto the nut requires removing the coating before the work can even begin. On a time-sensitive isolation or repair, that unplanned effort compounds quickly.

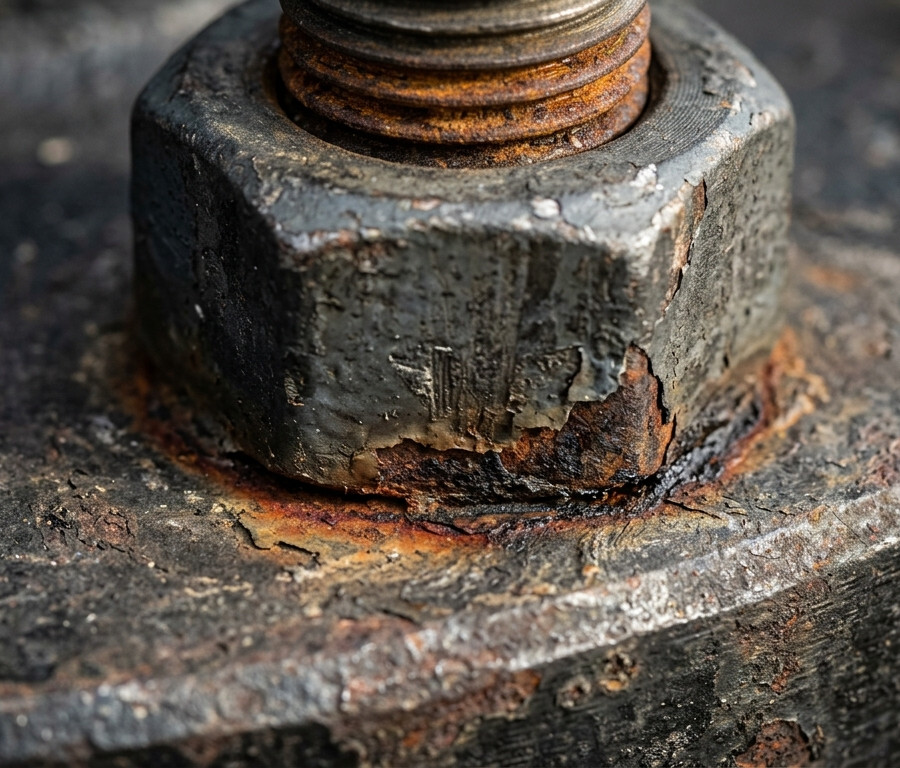

The geometry gets worse at the interior angles. Where a nut bears down against a flange face or connection plate, there is a ninety-degree internal corner – often with a slight undercut from the fastener chamfer – that is inaccessible by design. The piping or structural member being fastened becomes its own obstruction, blocking access from the angles needed to prepare the surface properly and build a continuous coating film into the corner. Achieving the surface profile required for meaningful mechanical adhesion in that corner is effectively impossible with conventional blasting equipment, and coating applied from the limited available angles is thin, poorly adhered, and discontinuous. What that produces is a crevice at the exact interface between the nut and the substrate. Trapped moisture, limited oxygen, and an electrochemical differential can now drive aggressive localized corrosion directly at the base of the fastener. That corrosion doesn't stay local for long. It migrates into the thread engagement zone and into the substrate face itself.

What started as a coating gap on a replaceable component becomes structural damage to an asset that isn't.

Industry has recognized this for a long time, and the engineering responses to it reflect how seriously the problem is taken in critical service environments. Where corrosion on bolted connections is genuinely unacceptable – offshore platforms, chemical processing, marine construction, high-temperature cycling service – the standard answer is to specify corrosion-resistant alloys from the outset. Stainless steel, duplex and super duplex, titanium, and specialty alloys like Inconel and Hastelloy are all regularly specified for bolting in aggressive environments. These materials largely sidestep the coating problem by eliminating the corrosion susceptibility of the base material. They work – but they introduce their own complications. The price premium ranges from significant to extraordinary depending on the alloy, the size, and the quantity involved, and on a large flanged piping system with hundreds of connections, the difference in material cost between a carbon steel bolting package and a stainless or duplex one is a capital line item that gets scrutinized at every project review. Galvanic compatibility adds another layer of complexity; alloy fasteners bearing against carbon steel flanging create a dissimilar metal contact that, if not carefully managed, can accelerate corrosion on the flange faces themselves – solving the bolt problem while creating a worse one directly adjacent to it.

Hot-dip galvanizing and zinc plating occupy the middle ground – more protective than a field-applied coating, less expensive than alloy substitution. Both address the corrosion resistance of the fastener itself reasonably well under ideal conditions. The vulnerability is installation. Galvanized and plated coatings are applied before the bolt goes into service, and the process of torquing a fastener to the specified preload is not gentle. Galling, thread damage, and coating abrasion during makeup are common, and the result is exposed base metal on a fastener that is now fully installed and largely inaccessible. There is no practical means of repairing that damage in place. The protection that was specified and paid for has been partially compromised before the flange has ever seen service conditions.

The engineering and procurement communities understand all of this. The question that doesn't always get asked early enough in the design process is whether the cost of a corrosion-resistant alloy bolting package – or the lifecycle cost of galvanized fasteners that degrade at installation – is actually the most economical way to solve a problem that is, at its core, a geometry and access problem rather than a materials problem.

The geometry problems outlined above share a common thread: they are all consequences of trying to apply a two-dimensional solution to a three-dimensional problem. Barrier coatings are surface treatments – they work by maintaining continuous contact between a protective film and the substrate beneath it. On a threaded fastener assembly, maintaining that continuity is geometrically impractical in several locations simultaneously, and the failure of any one of them is sufficient to initiate corrosion that undermines the rest. The most effective solutions to this problem tend to be the ones that stop trying to coat around the geometry and instead address the exposure directly.

Physically isolating the fastener assembly from the environment – and filling every void where moisture would otherwise accumulate – costs a fraction of alloy substitution, survives installation without damage, and doesn't rely on film continuity across surfaces that will never be properly prepared.
